2 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with G/Y Led for Switch

Name: 2 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with GY Led for Switch
Brand: DGKYD
Price: 1 USD

Wholesale 2 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with G/Y Led for Switch from china suppliers

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-215GYZQNL

Price : Please contact us to get the latest price.

Feature : High performance,magnetic

Product Name : RJ45 Ethernet Jack

LEDS/EMI fingers : custom as your need

Gender : Female RJ45 Jack

Application : lan,bridge,PC,router,usb hub network rj45

RJ45 Suitable : for CAT5&6 Ethernet Cable or UTP

Contact Now

Switch jack Integrated magnetics 8P8C RJ45 Ethernet Connector Led Tab Down 2 Port

Descriptions:

10/100Base-Tx RJ45 double port 1X2 Side Entry (Right Angle) with LEDS
Double port 1X2 Tab-Down RJ45 with internal magnetics
Internal magnetics are 100% electrically tested for HI-POT and functionality
Suitable for CAT5&6 fast Ethernet Cable or better UTP
350uHminimum OCL with 8mA bias current
High performance for maximum EMI suppression
Minimum 1500Vrms isolation per IEEE 802.3 requirement
ROHS-6 peak wave solder temperature rating 260℃
Operating temperarure range :-40℃ to +85℃
Storage temperature range :-40℃ to +85℃
Number of positions:8
Number of contacts loaded:8

2 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with G/Y Led for Switch

Integrated RJ45 connector main used to :

• 10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customerfirstly ,100% test, 0 defect, short lead time are our best advantages

Product Tags:

dual port rj45 connector

dual port rj45

2 Port RJ45 Ethernet Connector

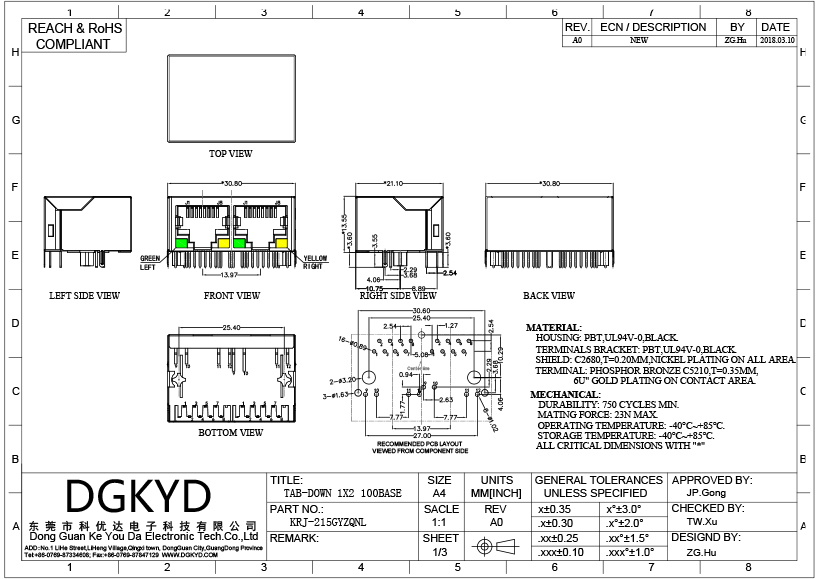

2 Port Integrated magnetics 8P8C RJ45 Ethernet Connector with G/Y Led for Switch Images
