10/100/1000BASE 2 Port RJ45 Jack Combo 8P8C , 1x2 RJ45 Connector With Transformer And Led

  • 1
  • 2

Place of Origin : DongGuan of China

Brand Name : DGKYD

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

MOQ : 1 piece

Packaging Details : Tray in Carton

Delivery Time : 10 days

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Model Number : KRJ-201QGYNL

Price : Please contact us to get the latest price.

Product Name : 2 Port RJ45 Jack

Feature : integrated magnetics

Application : router,usb hub,modem,communication etc

Port : 1x2,2x1 Port

Gender : Female

type : multi port RJ45

Contact Now

10/100/1000BASE 2 Port RJ45 Jack Combo 8P8C , 1x2 RJ45 connector with transformer and led

P/N:KRJ201QGYNL

Descriptions:

  • 10/100/1000Base-Tx RJ45 double port 1X2 Vertical with LED and side entry
  • Double port 1X2 Tab-Down RJ45 with internal magnetics
  • Internal magnetics are 100% electrically tested for HI-POT and functionality
  • Suitable for CAT5&6 fast Ethernet Cable or better UTP
  • 350uHminimum OCL with 8mA bias current
  • High performance for maximum EMI suppression
  • Minimum 1500Vrms isolation per IEEE 802.3 requirement

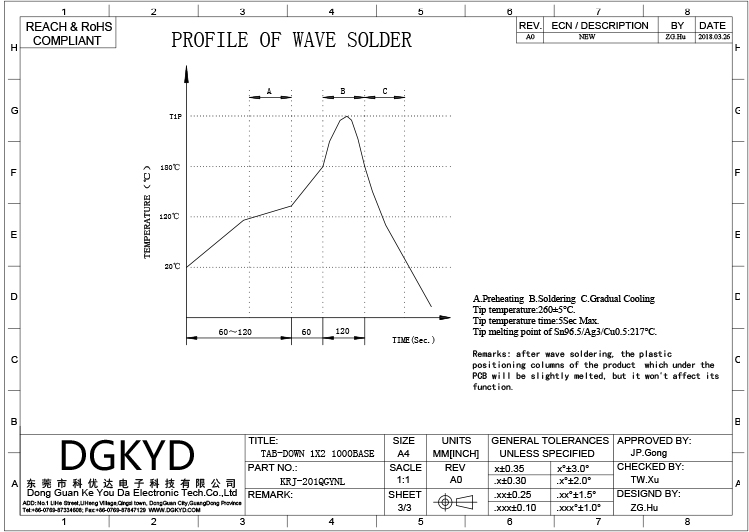

  • ROHS-6 peak wave solder temperature rating 260℃
  • Operating temperarure range :0℃ to +70℃
  • Storage temperature range :-40℃ to +85℃
  • Number of positions:8
  • Number of contacts loaded:8
  • Shieded:YES
  • Rohs compliant
  • Length:21.3mm
  • LEDS:Yes
  • EMI Fingers:Yes
  • Usage:KRJ-201QGYNL

Material specifications:

  • Plastic core:Glass fiber filler PBT Black(UL94V-0)
  • Contact:gold pin0.35mm thick phos bronze plated nickel then with 6u’gold
  • PCB Terminal:Phosphor bronze ,Tail-Tin over Nickl
  • Housing:Phenolic, PBT Black (UL94V-0)
  • Metal shell:Copper Alloy ,Tin and Nickel plated

Electrical Specifications:

.Insertion Loss:1-100MHZ -1.0dBmax

.Rturn Loss:1-30MHZ -16.0dBmin

30-60MHZ -14.0dBmin

60-80MHZ -10.0dBmin

.Cross Talk:1-30MHZ -40.0dBmin

30-60MHZ -35.0dBmin

60-80MHZ -30.0dBmin

.CMR:1-100MHZ -35dBmin

.Hi-pot:1500v AC 6S 1mA

.Turn Ratio:1CT:1CT±3%

.OCL:350uH @100KHZ 100Mv 8mA DC

Applications:

Integrated RJ45 connector main used to :

• 10/100M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic

transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,

telecommunication,MODEM,HomePNA,DSL/ADSL and so on.

Competitive Advantage:

Keyouda has various types of appearance and many kinds of internal schematic products,high quality,

customer firstly ,100% test, 0 defect, short lead time are our best advantages

10/100/1000BASE 2 Port RJ45 Jack Combo 8P8C , 1x2 RJ45 Connector With Transformer And Led

10/100/1000BASE 2 Port RJ45 Jack Combo 8P8C , 1x2 RJ45 Connector With Transformer And Led10/100/1000BASE 2 Port RJ45 Jack Combo 8P8C , 1x2 RJ45 Connector With Transformer And Led10/100/1000BASE 2 Port RJ45 Jack Combo 8P8C , 1x2 RJ45 Connector With Transformer And Led
