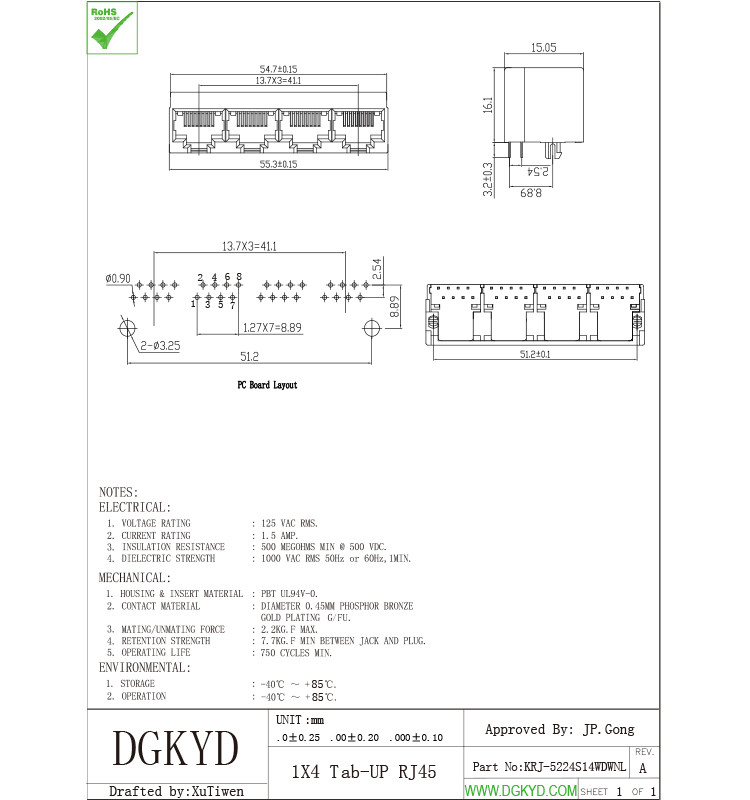

180 Degrees 1X4 RJ45 Multiple Port Connectors Top Entry Four Ports Ethernet Socket

Name: 180 Degrees 1X4 RJ45 Multiple Port Connectors Top Entry Four Ports Ethernet Socket
Brand: DGKYD
Price: 1 USD

Brand Name : DGKYD

Model Number : KRJ-5224S14WDWNL

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Price : Please contact us to get the latest price.

Packaging Details : Tray in Carton

Port : 4 ports

Mount Angle : 180°

Housing Color : Yellow

Speed : Cat 3/5

Contact Now

180 degrees 4 Port RJ45 Ethernet Jack Gold Plating FU Round Needle Network Connector 8p8c

180 Degrees 1X4 RJ45 Multiple Port Connectors Top Entry Four Ports Ethernet Socket

Descrition:

RJ45 ,in order to keep good touch between gold finger and crystal head,should paint the gold on the surface,there is 6u,15u,30,50u,usually use 6u,according to customer’s request and cost to proceed, gold finger insert and pull life should be 750 times above.

Applications:

RJ45 connector main used to :
10/100/1000M net card,PCMCIA net card,USB Hub,network switch,router,fiber optic transceivers,optical transceiver,IP phone, internet set-top box,internet camera,net bridge,computer,telecommunication,MODEM,HomePNA,DSL／ADSL and so on.

Specifications:

.Insulation Resistance :500MΩ MIN ＠500V DC

.Withstanding Voltage :AC 1000V 50HZ or 60HZ 1min.

.Durability:600 Mating Circles MIN.

.Gold Plating(3;6;15;30;50)u inch

.Tolerances Unless Otherwise Specified
