RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL

Brand Name : DGKYD

Model Number : KRJ-202GYZNL

Certification : RoHS/CE/UL/FCC/CE/ISO9001/ISO14001

Place of Origin : DongGuan of China

MOQ : 1 piece

Price : Please contact us to get the latest price.

Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram

Supply Ability : 100K pcs/day

Delivery Time : 10 days

Packaging Details : Tray in Carton

Modular Jack & Plug Interface Type  : RJ45 with Integrated Magnetics

Modular Jacks & Plugs Products  : RJ Type Jacks & Plugs

Connector Style  : Jack

Grounding Options  : Panel Ground and PCB Ground

Mount Style : DIP

OEM/ODM : Yes

Number of Positions/Contacts : 8p10c (RJ45, Ethernet)

Gold plating on contact pins : 6U

Storage temperature : -40°C~+85°C

Operating temperature : -40°C~+85°C

Contact Now

RJ45 Connector Gigabit Industrial Network Port Socket G/Y Horizontal Interface KRJ-202GYZNL
Product Overview

Industrial-grade RJ45 connector with Gigabit capability, featuring a green/yellow horizontal interface design for robust network connectivity in demanding environments.

Download Product Datasheet (PDF)
Technical Specifications
Specification Details
Part Number KRJ-202GYZNL
Brand DGKYD/OEM/ODM
Product Type Connector-Modular
Connector Style Jack
Jack Type RJ45
Connector Type Modular Jack
Latch Style Standard
Latch TAB-DOWN
Filter With Filter
LED Option With LED
LED Color Green/Yellow
Panel Stops With Panel Stops
Shielded With metal shield
Applies To Printed Circuit Board
Port Configuration Single Ports
Number of Positions 10
Jack Configuration 1X1
Terminals per Port 8
Shield Material Copper Alloy preplated with Nickel
PCB Mounting Orientation Side Entry (Right Angle)
Contact Mating Area Plating Gold 6u
Contact Base Material Phosphor Bronze
Solder Tail Contact Plating Material Tin-Lead over Nickel
PCB Mounting Style Through Hole
Termination Method to PC Board Through Hole-Press-Fit
Board Lock With/Without Board Lock
Housing Material PBT Polyester
Housing Color Black
Housing Material Temperature Standard
UL Flammability Rating UL 94V-0

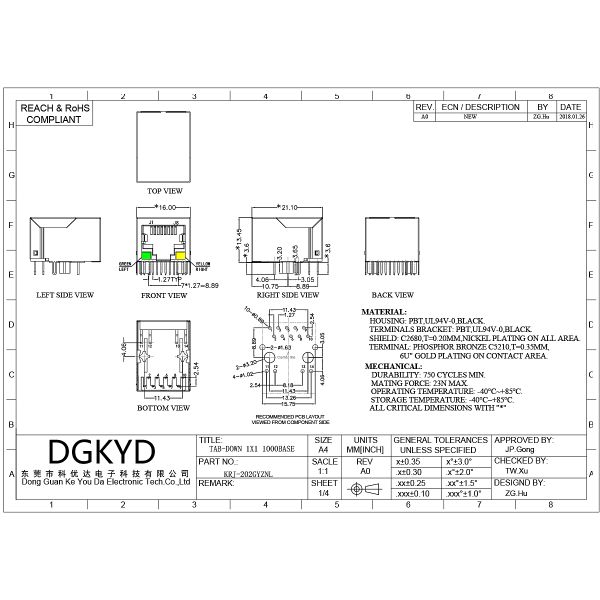

Product Images
RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL
Manufacturer Information
RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL Company Profile
RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL Factory Show
RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL Factory Show
RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL Factory Show
RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL DGKYD Product
RJ45 connector Gigabit industrial network port network socket G/Y horizontal interface KRJ-202GYZNL DGKYD Product
Product Features
  • Interface type: crystal head application: 10/100/1000BASE-T Ethernet
  • Type: RJ45 built in magnetics
  • Working frequency: high frequency characteristic: filtering, anti-interference
  • Working temperature: -40℃ to 85℃
  • Storage temperature: -40℃ to 85℃
  • Lead free soldering: wave soldering height up to 265℃

RJ45 full series of integrated circuit accessories, RJ45 network connector manufacturer direct supply

  • Business mode: Manufacturer
  • Delivery time: on time delivery, around two weeks
  • Specs for choices: LED indicator light (green, yellow, red, orange, blue, bi-color LED)
  • Shield with EMI fingers or not
  • Coil ratio of magnetic core
  • Magnetics circuit diversification optional
  • Contact gold plating (FU, 3U, 6U, 15u, 30U, 50U)
  • Plastic housing material (PBT, PA46, PA9T, LCP)

The electrical properties of the products meet the industry standards, the appearance and mechanical properties meet the appearance dimensions, the mechanical manufacturing industry standards, and the environmental protection standards. Your satisfaction is the purpose of our service!
